Frequency Adjustable Series Resonance Test Set

Name: Frequency Adjustable Series Resonance Test Set
Brand: Huaying
Price: 818 USD

Place of Origin : Wuhan Hubei China

Brand Name : Huaying

Certification : ISO

Model Number : Huaying Series

MOQ : 1 Set

Price : whhy818@163.com

Packaging Details : Wooden Case

Delivery Time : 7 Working Days

Payment Terms : T/T L/C

Supply Ability : 200 sets per month

Contact Now

1. Product Name:

Frequency Adjustable Series Resonance Test Set

2. Equipment Description:

It is applied to testing the insulation ability of insulation materials in power equipment. The frequency of test voltage is adjustable which would lead to series resonance in testing circuit. Both the conductors connected in test circuit in series and the capacitors connected in test circuit in parallel are also adjustable. That makes the test set is widely applied in GIS, Power cable and generator insulation tester.

3.Technical Parameters:

1 Max voltage output: 0~1000KV;

2 Max output Capacity: 0~6400KVA;

3 Test frequency range: 30~300HZ;

4 Frequency setting resolution: 0.1HZ;

5 Test voltage waveform: sine wave, waveform deviation factor : ≤1%;

6 Power supply: 380V±10%, three-phase 50Hz/60Hz

7 Environment condition: Temperature: 0~50°C

8 Humidity: ≤ 80%RH

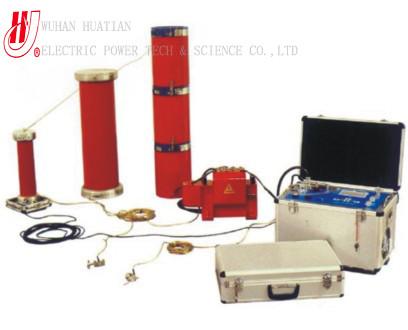

4. Product Picture:

China Frequency Adjustable Series Resonance Test Set wholesale

Frequency Adjustable Series Resonance Test Set Images
